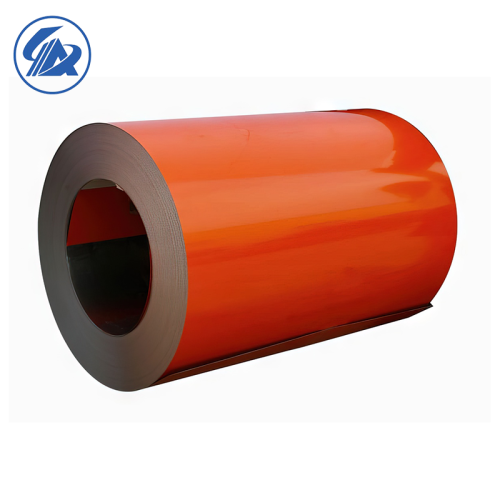

Cold Rolled Prepainted Zinc Galvalume Steel Sheet Strip PPGL Hot DIP Ral Color Galvanized Steel Coil PPGI Factory
We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

Cold Rolled Prepainted Zinc Galvalume Steel Sheet Strip PPGL Hot DIP Ral Color Galvanized Steel Coil PPGI Factory

Item No.: 00176
standard:JIS, ASTM, AISI, BN, DIN
Thickness:0.12-1.5mm
Width:914-1250mm
Length:Customers' Requirement
Certificate:JIS, ISO9001, ISO
Color:Customer requirements
Shape:coil/sheet
Zinc coating:AZ15-AZ275
Description Product Advantages Why Choose Us Review
Description

Shanghai AIYIA Industrial Co., Ltd. exports various pre-coated steel coils, such as RAL color series, wood grain pattern series, camouflage pattern series, stone pattern series, matte pattern series, flower pattern series, etc. Products are exported to the international market, and you are welcome to purchase!

Product Specifications

Technical Standard

EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653





Steel Grade

DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,

SECE, BLCE+Z, BLDE+Z, BUSDE+Z

or Customer’s Requirement

Base Steel

Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel

Thickness

0.12-6.0mm

Width

600-1500mm

Surface Color

RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc

Quality

Approved by SGS,ISO

Coil Weight

3-20metric ton per coil

Package

Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement

Export market

Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

Product Introduction

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.


Diagram of Steel Surface Coating And Layers

PPGIPPGI PPGL

Production Process

Substrate Type

1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)

The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;

2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)

Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);

3.Electroplated zinc color coated sheet

The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.

Coating Type

Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.

Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.

High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.

Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.

Product Advantages

Product Advantages

1.Good durability and long life compared with galvanized steel.

2.Good heat resistance, less discoloration at high temperature than galvanized steel.

3.Good thermal reflectivity.

4.Processability and spraying performance similar to galvanized steel.

5.Good welding performance.

6.Good performance-price ratio, durable performance and extremely competitive price.

Product Details

































Production Line



Application of PPGI & PPGL

Color-coated steel sheets are widely used in construction, industry, household manufacturing, product packaging,interior decoration and other fields.


Product Category

Self Cleaning Prepainted Steel Coil Thermal Control Prepainted Steel Coil Antistatic Prepainted Steel Coil
Antiseptic Prepainted Steel Coil Hydrogen Peroxide Resistance Prepainted Steel Coil Animal Husbandry Prepainted Steel Coil



Why Choose Us

01.Advanced equipment

Three galvanized steel coil production lines, using the most advanced equipment in China, a plant area of 30,000 square meters.

02.High-quality base steel

We choose high-quality raw materials. Our base steel comes from Baosteel, Shougang, etc., and our coating materials come from Nippon, Aksu and other well-known international brands.

03.Output

Galvanized steel coils with a monthly output of about 5000-10000 tons, and have sufficient inventory.

04.Quality inspection

The implementation of strict quality inspection standards, products comply with ISO, SGS international standards, to ensure 100% compliance with customer requirements.

05.Fast delivery

Advanced production management process, from production to delivery, efficient and fast.

06.Sales services

We have professional sales staff in Spanish, Portuguese, French, Arabic, and Russian for different markets.


Product Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards, Specifications, Package No., Contract No., Heat No., Weight of zinc film, Color, Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
